Solar Dryer In Sikkim For Large Cardamom, Ginger & Turmeric Processing

Sikkim has a distinctive opportunity for agricultural value addition because many of its important crops are high-value spices, horticultural produce and specialised hill commodities.

The State Horticulture Department identifies large cardamom, ginger, turmeric and cherry pepper among its important spice crops, alongside fruits such as Sikkim mandarin, pear and kiwi. Large cardamom has an especially strong connection with the state and is officially recognised as one of Sikkim’s major cash crops.

For farmers, FPOs, SHGs, cooperatives and processors, these commodities create a need for appropriate post-harvest handling.

Where moisture reduction forms part of that workflow, a solar dryer in Sikkim can provide an enclosed and organised drying environment instead of relying entirely on exposed outdoor drying.

The correct system, however, should not be selected simply by asking for a 50 kg, 100 kg or 500 kg machine.

The more important starting questions are:

What commodity will be dried?

What form will enter the dryer?

How much fresh material is handled per day?

What moisture condition is required after drying?

Will the system operate seasonally or regularly?

Does the production schedule require backup heating?

Answering these questions helps identify a solar drying system around the actual processing requirement.

Large Cardamom Makes Sikkim a Unique Solar Drying Market

Large cardamom gives Sikkim a very different drying requirement from many other Indian states.

Sikkim’s Agriculture Department describes large cardamom as a main cash crop of the sub-Himalayan state, while Spices Board programmes specifically recognise Sikkim in connection with large-cardamom production and post-harvest improvement.

This means a Sikkim solar-drying strategy should not begin with generic statements about drying fruits and vegetables.

Large cardamom processing should be one of the core applications.

After harvest and appropriate preparation, cardamom capsules require moisture reduction or curing before subsequent handling and marketing.

The drying stage can influence the condition of the finished spice, so the objective should not simply be to expose cardamom to the highest possible heat.

The system should instead support controlled drying according to:

Initial Moisture

Cardamom Condition

Batch Quantity

Loading Depth

Air Movement

Drying Temperature

Ambient Conditions

Required Final Moisture

Processing Method

Solar Dryer for Large Cardamom

A solar dryer for large cardamom provides a defined drying chamber in which cardamom can be loaded and processed using solar-assisted heat and organised airflow.

Large cardamom has already been the subject of solar and solar-biomass drying research in Sikkim. Central Agricultural University records development work on a solar-biomass hybrid dryer specifically for large-cardamom drying.

This is important because it confirms that solar drying is not merely a theoretical application for Sikkim cardamom.

It has a direct crop-specific post-harvest context.

For commercial planning, users should consider:

Daily Harvest Quantity

Fresh Cardamom Quantity per Batch

Incoming Moisture

Required Curing Method

Dryer Loading Area

Airflow

Available Solar Energy

Processing Season

Required Daily Throughput

Backup Requirement

A grower handling limited seasonal quantities may require a different solution from an FPO collecting cardamom from multiple farmers.

Cardamom Drying Is More Than Simply Heating the Crop

Large cardamom deserves careful drying because curing is a defined post-harvest operation.

Traditional and improved drying systems are used for cardamom, and Spices Board guidance recognises improved curing devices and drying technologies for the crop.

The practical objective is controlled moisture removal.

Operators should therefore avoid assuming:

Maximum temperature means better drying

One temperature suits every batch

More material per tray always increases productivity

One drying duration works in every season

Solar drying removes the need to monitor moisture

Instead, drying decisions should be based on the material entering the system and the required output.

For high-value spices, this crop-specific approach is more useful than choosing equipment only according to chamber size.

Why Airflow Matters in Large Cardamom Drying

Heat helps moisture move from agricultural material, but that moisture then enters the air around the product.

The moisture-bearing air needs to move away so drying can continue.

For large cardamom, the relationship between:

Heat

Airflow

Capsule Depth

Tray Loading

Air Humidity

Product Moisture

Drying Time

should therefore be considered together.

Excessively deep loading can reduce air movement through parts of the material.

Similarly, increasing temperature without adequate moisture removal from the chamber does not automatically create an effective drying process.

This is why commercial solar dryer selection should consider the complete heat-and-airflow system rather than only its maximum temperature rating.

Solar Dryer for Ginger in Sikkim

Ginger is another important Sikkim spice and agricultural commodity identified by the state’s horticulture sector.

A solar dryer for ginger may be used where dehydrated ginger or another suitable dried ginger product is part of the processor’s intended workflow.

Before ginger reaches the dryer, appropriate preparation may include separate operations such as:

Sorting

Washing

Cleaning

Peeling where required

Slicing or Cutting

Batch Preparation

The dryer does not perform these operations.

Its role begins when suitably prepared ginger is loaded for moisture reduction.

Why Ginger Slice Thickness Matters

Ginger should not be evaluated only in kilograms.

The physical form entering the dryer can have a major effect on drying behaviour.

Consider:

Whole Rhizome

Large Pieces

Thick Slices

Thin Slices

Each creates a different relationship between internal moisture and exposed surface area.

For a commercial ginger drying machine, processors should therefore define:

Fresh Ginger Quantity

Prepared Form

Slice Thickness

Tray Loading

Required Drying Area

Airflow

Initial Moisture

Required Final Condition

This information provides a better foundation for system selection than simply saying that 100 kg of ginger needs to be dried.

Solar Dryer for Turmeric Processing

Turmeric is also an important spice crop in Sikkim’s horticultural system.

A solar dryer for turmeric can support the drying stage of an appropriate turmeric-processing workflow.

However, an important technical distinction should be maintained:

The solar dryer performs drying. It does not perform turmeric curing or boiling.

Depending on the processing method, turmeric may require upstream operations before drying.

A typical workflow may include:

Harvesting

Cleaning

Curing / Boiling as Required

Cooling

Slicing where Applicable

Tray Loading

Solar-Assisted Drying

Moisture Assessment

Polishing or Further Processing

Grinding

Packaging

The exact process should be selected according to the desired turmeric product.

This separation is important because drying equipment should not be marketed as though it performs every stage of turmeric processing.

Turmeric Finger vs Sliced Turmeric Drying

The material presented to the dryer also matters.

Whole or cured turmeric fingers can behave differently from prepared turmeric slices.

Differences may include:

Material Thickness

Exposed Surface Area

Moisture-Movement Distance

Tray Arrangement

Loading Density

Drying Duration

This means processors should clearly identify the intended product before equipment selection.

A business producing dried turmeric slices may require a different tray-loading plan from one handling another prepared form.

Dalle / Cherry Pepper and Chilli Drying

Sikkim’s official horticulture information also identifies cherry pepper among the state’s spice crops.

Where dried chilli or pepper forms part of the intended product range, a solar dryer for chilli can provide another application for an agricultural processing unit.

Chilli processing should consider:

Variety

Whole or Cut Form

Initial Moisture

Product Size

Tray Loading

Airflow

Temperature

Required Final Moisture

The dryer should support moisture reduction while the processor separately manages sorting, stalk removal, grading, grinding and packaging where required.

For FPOs handling multiple spices, this can make a suitably configured commercial dryer useful across different separate crop batches.

However, cardamom, ginger, turmeric and chilli should not all be processed using one universal setting.

Solar Drying for Sikkim Mandarin and Kiwi

Sikkim’s crop profile extends beyond spices.

The State Horticulture Department also lists fruits including Sikkim mandarin, pear and kiwi.

Where dehydration is commercially appropriate, suitable fruit material may also be evaluated for solar drying.

Possible applications include:

Mandarin or Citrus Processing

Selected Citrus Peel Drying

Kiwi Drying

Pear Drying

Other Suitable Fruit Processing

Fruit drying creates different technical requirements from cardamom and spices.

Fresh fruit generally contains substantial moisture and may require preparation such as washing, peeling, slicing or deseeding before loading.

For this reason, a multi-commodity processor should develop separate operating procedures for each product.

Solar Dryer for Herbs and Suitable Botanical Materials

Sikkim’s hill agriculture can also create opportunities for botanical and herbal processing where dehydration is appropriate.

Herbs behave differently from dense spices and fruit pieces because leaves and similar materials may have:

Low Bulk Density

Large Surface Area

Light Weight

Different Temperature Sensitivity

Different Airflow Requirements

A small kilogram quantity of herbs can therefore require significant tray surface.

For herbal processing, capacity should not be evaluated by kilograms alone.

Usable tray area matters.

An FPO processing heavy ginger during one season and lightweight herbal material during another may therefore require a dryer configuration capable of supporting different loading patterns.

Why One Dryer Capacity Does Not Mean One Crop Capacity

A dryer advertised as having a particular batch capacity should not be interpreted as though every commodity occupies the chamber identically.

For example:

100 kg of ginger

100 kg of leafy herbs

100 kg of cardamom

100 kg of sliced fruit

can require very different amounts of tray surface and airflow.

Commercial capacity planning should therefore consider:

Fresh Weight

Product Form

Bulk Density

Required Layer Thickness

Number of Trays

Usable Drying Area

Airflow Path

Expected Number of Batches

Required Daily Throughput

This is especially important for FPOs and common processing centres planning to use one system for multiple crops.

Solar Drying for FPOs and Farmer Groups in Sikkim

Spice value-chain programmes in Sikkim involve farmers, FPOs, SHGs, buyers and other stakeholders around commodities including large cardamom, ginger and turmeric.

This makes group-based processing an important commercial use case.

A solar dryer may be evaluated for:

Farmer Producer Organisations

Farmer Producer Companies

Self-Help Groups

Agricultural Cooperatives

Women-Led Processing Groups

Spice Grower Groups

Rural Enterprises

Agri Startups

Food-Processing MSMEs

Commercial Spice Processors

Common Processing Centres

For a collective project, dryer selection should consider total procurement and processing patterns rather than the production of one individual farmer.

Plan Around Peak Harvest – But Do Not Oversize Blindly

Crop availability can be highly seasonal.

During harvest, a processor may temporarily receive substantially more material than during the rest of the year.

Buying the largest possible dryer is not always the best answer.

Instead, estimate:

Normal Daily Quantity

Peak Daily Quantity

Number of Processing Days

Number of Batches Possible per Day

Available Labour

Preparation Capacity

Tray Loading Capacity

Required Finished Output

Available Space

Future Expansion

This helps distinguish between a system that is appropriately sized and one that is oversized for most of the year.

Enclosed Solar Drying vs Open Outdoor Drying

Open outdoor drying is simple, but the product remains directly exposed to the surrounding environment.

An enclosed solar dryer places prepared material inside a defined chamber and on organised drying surfaces.

This can help reduce direct exposure of the loaded product to:

Dust

Insects

Birds

Uncontrolled Contact

Sudden Outdoor Disturbance

It also gives the processor a more structured environment for:

Batch Identification

Tray Loading

Product Inspection

Loading and Unloading

Cleaning Between Crops

Drying Endpoint Monitoring

However, a solar dryer should not be described as completely independent of weather.

Available solar radiation, ambient temperature and relative humidity can still influence drying performance.

Sikkim Processing Needs Commodity-Specific Drying, Not Generic Claims

Large cardamom, ginger, turmeric, chilli, fruits and herbs should not be treated as identical materials.

Their differences include:

Initial Moisture

Size

Thickness

Density

Surface Area

Temperature Sensitivity

Required Final Moisture

Further Processing

This is why claims such as “every crop dries in the same number of hours” are not technically reliable.

Actual drying time can vary with:

Commodity

Preparation

Initial Moisture

Final Moisture Target

Tray Loading

Airflow

Drying Temperature

Relative Humidity

Solar Radiation

System Configuration

Processors should evaluate these variables for every new product.

Solar-Primary Dryer with Optional Hybrid Backup

A solar dryer primarily uses available solar energy for the drying process.

Where a processor has a defined commercial production schedule, an optional backup system may be considered.

Depending on configuration, a hybrid solar dryer may include suitable electric or biomass backup.

This can be evaluated according to:

Commodity

Location

Season

Daily Production Target

Available Solar Conditions

Required Operating Window

Batch Quantity

Processing Schedule

Backup should not automatically be added to every project.

It should solve a genuine production requirement.

Solar Dryer for Small Farmers vs Commercial Processing Units

Sikkim contains potential users at very different scales.

A smaller solar dryer may support:

Individual Growers

SHGs

Speciality Crop Processing

Trial Production

Small Seasonal Batches

Rural Micro Enterprises

Larger commercial systems can be evaluated for:

FPOs

FPCs

Cooperatives

Commercial Spice Processing

Food-Processing MSMEs

Institutional Projects

Common Processing Facilities

Regular Multi-Batch Production

Rudra Solar Energy offers solar dryer configurations from small-batch requirements to larger commercial applications, with system selection based on crop and processing requirement.

How to Select a Commercial Solar Dryer in Sikkim

Before requesting a quotation, a processor should ideally provide the following information.

Commodity:
Large cardamom, ginger, turmeric, chilli, fruit, herb or another product?

Product Form:
Whole, sliced, cured, peeled, capsule, leaf or another prepared form?

Fresh Quantity:
How many kilograms need to be processed per batch or per day?

Location:
Where will the system be installed in Sikkim?

Season:
Which months will the dryer operate?

Final Requirement:
What condition or moisture endpoint is needed?

Current Drying Method:
How is the material processed today?

Production Frequency:
Occasional, seasonal or regular commercial processing?

Backup Requirement:
Does the business require additional drying support during insufficient solar conditions?

Future Requirement:
Is processing volume expected to increase?

Providing this information helps the manufacturer recommend a system around actual production rather than an approximate machine size.

Solar Dryer Price in Sikkim – What Affects the Cost?

There is no single meaningful solar dryer price in Sikkim for every buyer because system cost depends on configuration.

Important factors can include:

Batch Capacity

Drying Area

Number of Trays

Chamber Dimensions

Construction Material

Airflow System

Solar Heating Arrangement

Control Requirement

Solar-Only or Hybrid Design

Electric Backup

Biomass Backup

Monitoring Equipment

Transport

Installation

Customisation

A solar dryer for a small cardamom grower may therefore have a very different configuration from a commercial processing centre handling cardamom, ginger and turmeric.

The best price comparison should be based on equivalent capacity and technical configuration rather than only the advertised machine name.

Ask About Usable Tray Area – Not Just Kilograms

This is one of the most useful questions a commercial buyer can ask.

Kilogram capacity tells only part of the story.

Buyers should also ask:

How many trays are included?

What is the usable tray area?

What tray material is used?

How much material can be loaded without excessive depth?

How is air moved through the chamber?

Can different crops be processed in separate batches?

Can the system be customised?

Is backup available if required?

These questions provide a clearer picture of how the equipment will fit the actual processing operation.

Drying Is Only One Stage of Value Addition

A solar dryer can be an important processing machine, but it does not create a complete value-added business by itself.

After drying, commercial processors may still need:

Moisture Checking

Cooling

Sorting

Grading

Grinding

Packaging

Labelling

Storage

Buyer Development

Distribution

Food-Safety Compliance

Market quality requirements should ideally be identified before investing in processing equipment.

This is particularly important for high-value products such as spices, where the intended buyer may have specific expectations about moisture, cleanliness, grading and product form.

Commercial Solar Dryer in Sikkim for Multi-Crop Processing

For some processors, the most practical requirement is not a machine dedicated to only one crop.

A suitably configured commercial solar dryer in Sikkim may support different compatible agricultural materials in separate batches across the year.

For example:

Large Cardamom

Ginger

Turmeric

Cherry Pepper / Chilli

Kiwi

Mandarin-Based Materials

Selected Fruits

Selected Herbs

Other Suitable Agricultural Products

But multi-crop capability should never be interpreted as a single operating recipe.

Whenever the product changes, the operator should reassess:

Preparation

Tray Loading

Airflow

Temperature

Processing Time

Final Moisture Requirement

Cleaning Between Batches

This provides a more technically responsible approach to multi-commodity processing.

Why Large Cardamom Should Be the Starting Point for Sikkim

Many state-level solar dryer articles use the same generic combination of fruits, vegetables and spices.

Sikkim deserves a more specific approach.

Large cardamom is not simply another item in a long crop list. It is closely associated with Sikkim’s agricultural and post-harvest economy, and official institutions have specifically worked on improved drying and curing technologies for the crop.

That makes solar dryer for large cardamom an important application-specific search and processing opportunity.

From there, a broader solar-drying system can also be evaluated for ginger, turmeric, chilli, fruits and other suitable commodities.

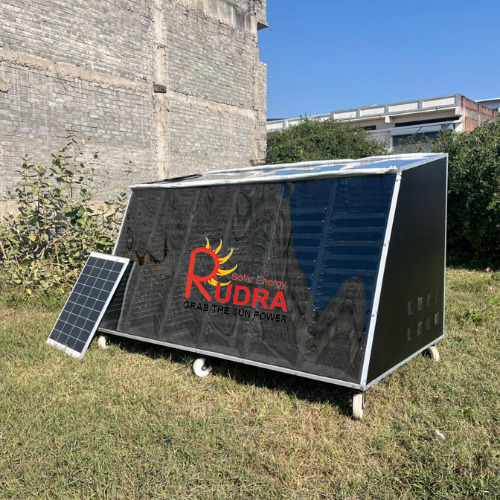

Rudra Solar Energy – Solar Dryer for Sikkim

Rudra Solar Energy designs and manufactures solar dryer systems for agricultural, spice, horticultural and commercial processing applications.

For Sikkim, dryer selection can be evaluated around applications such as:

Large Cardamom Drying

Ginger Drying

Turmeric Drying

Chilli Drying

Fruit Drying

Herbal Material Drying

FPO Processing

Commercial Spice Processing

Multi-Crop Agricultural Processing

Systems can be selected according to commodity, fresh batch quantity, tray requirement, airflow, production season and optional backup requirement.

For buyers searching for a solar dryer in Sikkim, commercial solar dryer in Sikkim, solar dryer for large cardamom, cardamom drying machine, solar dryer for ginger, ginger drying machine, solar dryer for turmeric, turmeric drying machine, solar dehydrator, agricultural solar dryer or hybrid solar dryer, the best first step is to define the crop and actual processing requirement.

Share your commodity, Sikkim location, fresh batch quantity, product form and expected daily processing volume with Rudra Solar Energy to discuss a suitable solar dryer configuration.
